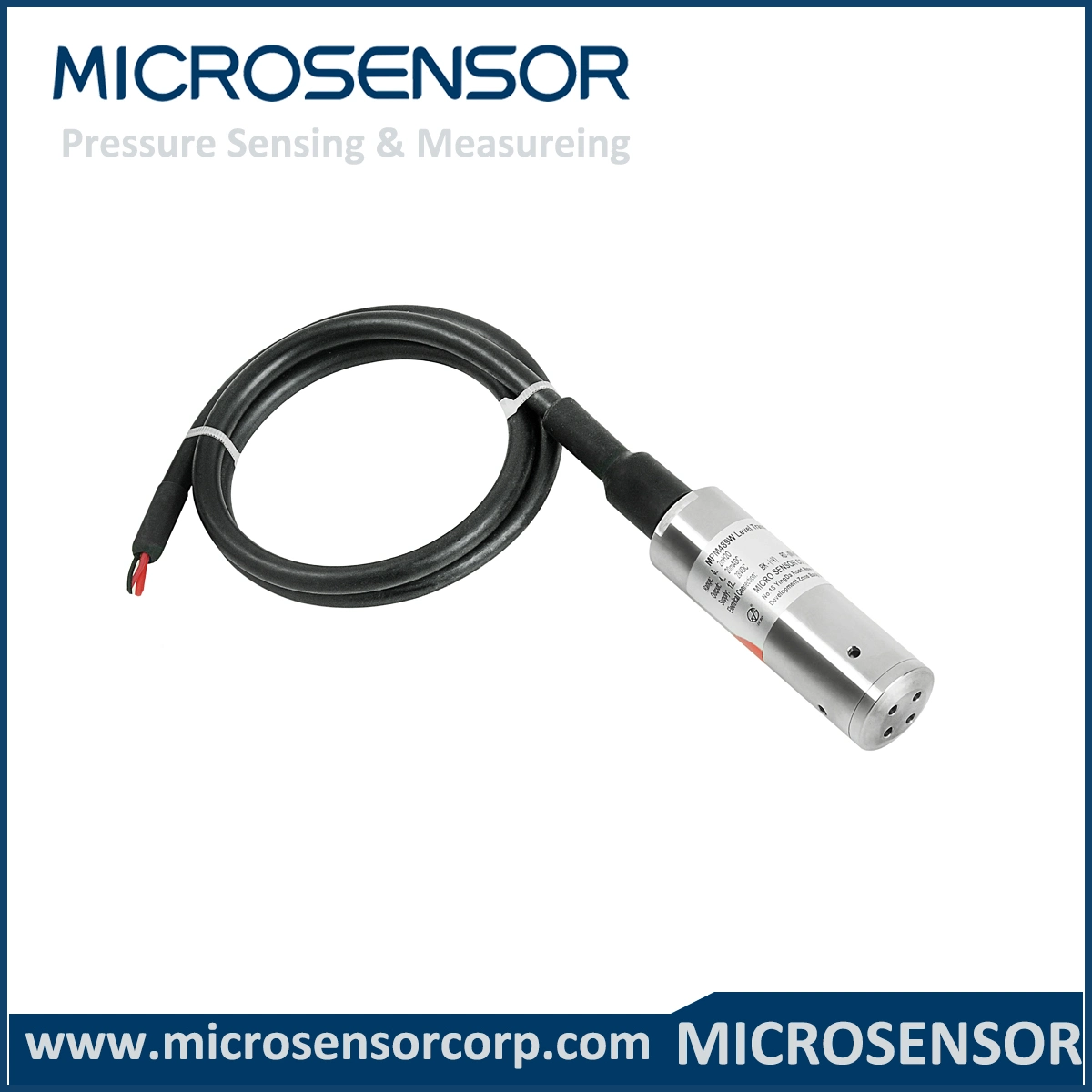

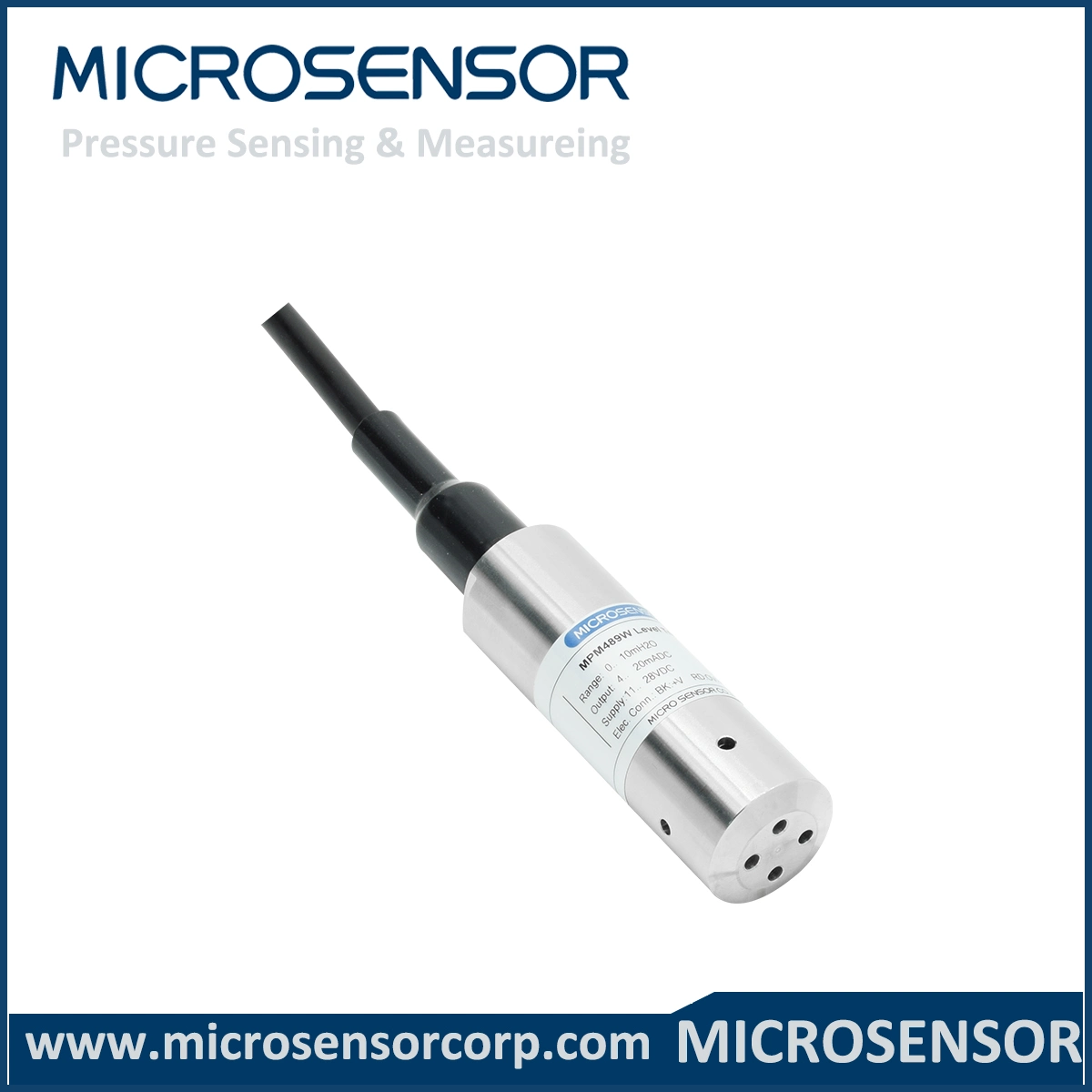

4~20mA DC IP68 ATEX explosion-proof tank diving custom level transmitter MPM489W

4~20mA IP68 ATEX Explosion-proof Submersible Water Customized Level Transmitter MPM489WFeatures:1. Cost-efficient2. Integrated construction;3. IP68;4. High stability & reliability;5. RoHS; Applications:1. Medicine;2. Metallurgy;3. City water;4. Drainage and hydrology;5. Power station;6. Mine Options:1 .Intrinsic sa

Featured Products

4~20mA IP68 ATEX Explosion-proof Submersible Water Customized Level Transmitter MPM489W

Features:
1. Cost-efficient
2. Integrated construction;
3. IP68;
4. High stability & reliability;
5. RoHS;

Applications:
1. Medicine;
2. Metallurgy;
3. City water;
4. Drainage and hydrology;
5. Power station;
6. Mine

Options:
1 .Intrinsic safe version;
2 .Fixed flange;
3. Water-proof connecting box;
4. Lightening-proof connecting box

Specifications:
1. Range(FS):  1  2  5  10  20  50  100  200mH2O
2. Overpressure:  2 times FS
3. Accuracy:      0.5%FS
4. Stability:      range>20mH2O,  ±0.2%FS/
range≤20mH2O,  20mmH2O
5.Thermal drift:                       zero              span
range>10mH2O     0.02%FS/ºC        0.05%FS/ºC
range≤10mH2O     0.05%FS/ºC        0.05%FS/ºC
6. Application temp. range:  -10~80ºC;
7. Storage temp. range:    -40~100ºC
8. Power supply:   12~28VDC
9. Output signal:   4~20mADC(2-wire)
10 .Load (Ω):     <(Uv-12)/0.02


Outline Construction:
(Unit:mm)

4~20mA DC IP68 ATEX Explosion-proof Tank Submersible Water Customized Level Transmitter MPM489W

Order guide:
MPM489WLevel Transmitter
  RangePressure range: 0~1200mH2O
[0~XmH2O] LX:actual measurement range   L: cable length   suggested L-X=(1~2)m
  CodeOutput signal
E4~20mADC
  CodeConstruction material
DiaphragmPortHousing
22SS 316LSSSS
24SS 316LSS 316LSS 316L
25TantalumSSSS
  CodeOthers
M10~100% indicator
YaAluminum connection box with display
YbAluminum connection box without display
YcMS200 water-proof connection box (default)
YdPD140 lightening-proof protection device
iIntrinsic safe version ExiaIICT6
C1M20×1.5 male
C3G1/2 male
F1Fixed flange

MPM489W    [0~2mH2O]5      E         22      Yc                the whole spec


Certificates We Have
4~20mA DC IP68 ATEX Explosion-proof Tank Submersible Water Customized Level Transmitter MPM489W



Company Overview
4~20mA DC IP68 ATEX Explosion-proof Tank Submersible Water Customized Level Transmitter MPM489W


Products Family
4~20mA DC IP68 ATEX Explosion-proof Tank Submersible Water Customized Level Transmitter MPM489W




FAQ:
1. Q: Are you manufacturer or trading company?
    A: We are 48-year professional manufacturer of Pressure/ Level/ Temperature/Flow transmitters with 4~20mA, Hart, Rs485 & Modbus protocols, pressure sensors with SDI, I2C, 4~20mA, 0.5~4.5V and etc, and wireless IOT measurement transmitters. We provide high quality products with high competitive factory price.

2. Q: What's your quality control system?
    A: As an ISO9001:2008 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.

3Q: Is there MOQ with your product?
    A: We have no MOQ limits, 1pc for testing is acceptable.

4Q: Do you provide customized products?
    A: Yes, we can print your logo on our products; OEM, ODM & customization are welcomed.

5. Q: What is the warranty of your products? And after-sales service?
    A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.

6. Q: What is lead time of your product?
    A: We are factory, our lead time is always within 10~15 working days for products without customization, but lead time will vary based on different products. You can check detail lead time with our sales.

7. Q: What international certificates do you have for your products?
    A: we have CE, RoHS, UL, ATEX as well as ship-use DNV etc.
