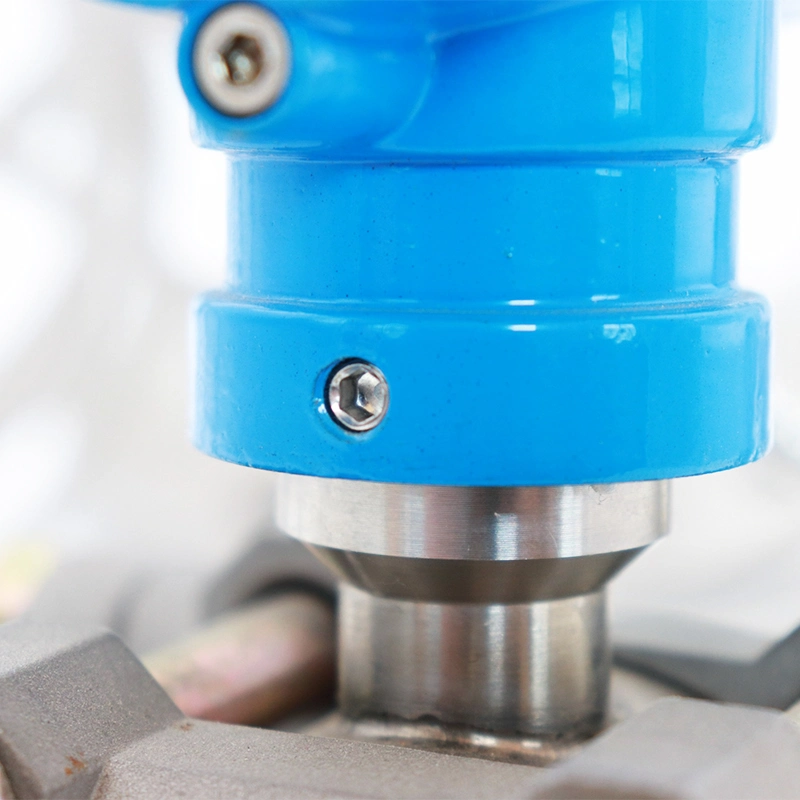

WNK58 High Temperature double flange differential Pressure Transmitter, Remote Sealed
(Gauge/absolute/Differential pressure transmitter)
| Features | Applications: |
| 1. High reference accuracy up to 0.075%, higher on request. | Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement. |
| 2. Long-term drift ≤±0.25%URL for 1 year. | |
| 3. Range down ratio 100:1; higher on request. | Level measurement in liquids. |

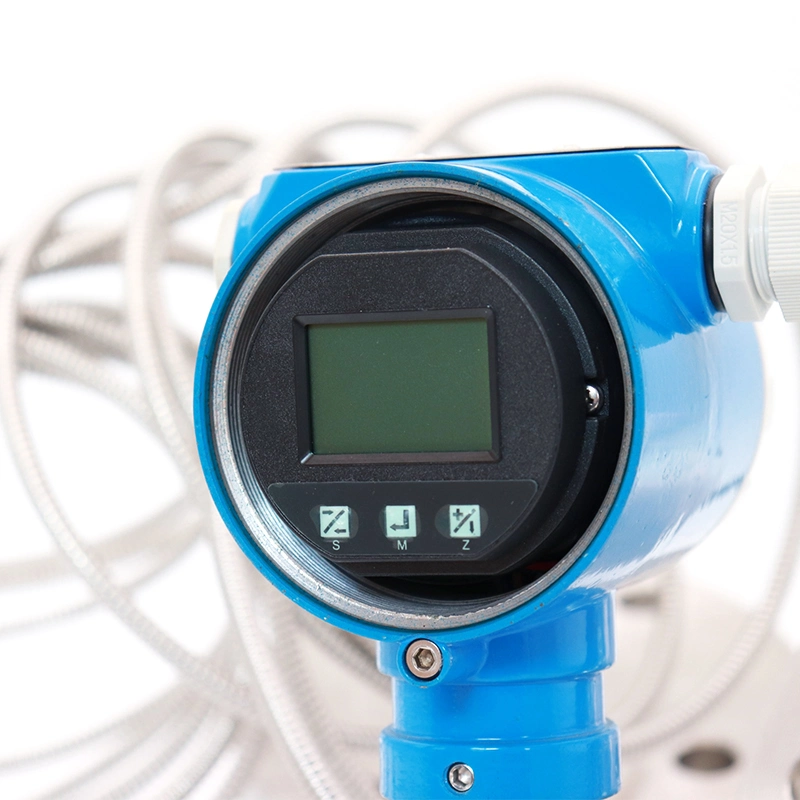

| 4. Replaceable display unit & electronic module. | High process temperatures up to 280ºC with diaphragm seals. |
| 5. Universal electronics. | It can be used below particular occasiaon |
| 6. Menu-guided operation. | 1. Need to isolate the high temperature medium with transmitter |
| 7. Factory default data recovery is supportive | 2. The measuring medium is corrosive to the transmitter |
| 8. Hart, PROFIBUS-PA or FF protocol for option. | 3. The measuring medium solidification or crystallization due to environmental or temperature changes |
| 4. Suspended liquid or high viscosity medium |
| Technical Data WNK58 High Temperature double flange Gauge/Absolute/Differential pressure transmitter, Remote Sealed | |
| Applicable media | liquid, gas and steam |
| Pressure range | -4000kPa~4000kPa |
| Accuracy | 0.075%, higher on request |
| Stability | ±0.25% of URL for 1 year |
| Temperature drift | ±0.0625% of URL/10ºC |
| Output signals | 4~20mA, Hart, PROFIBUS-PA for option |
| Housing material | Aluminum14 |
| Mechanical connection | M20×1.5;G1/2;1/2NPT |
| Protection class | IP66/67 |
| Diaphragm material | 316L, Alloy C-276, Monel, Tantalum diaphragm, 316L with PTFE coating etc for option |
| Fluid filled | Silicon oil,Vegetable oil,Inert oil ,High temperature oil etc for option |
| Ex-proof | Exia II CT4, other option per request |
| Power Supply | 10.5-55V DC 10.5-30V DC |
| Ambient temperature | -40 to 85ºC,-40 to 80ºCfor LCD header |
| Storage temperature | -45 to 85ºC,-40 to 80ºC for LCD header ; |
For more information, please contact us for product manual.
WNK58 installation diagram
