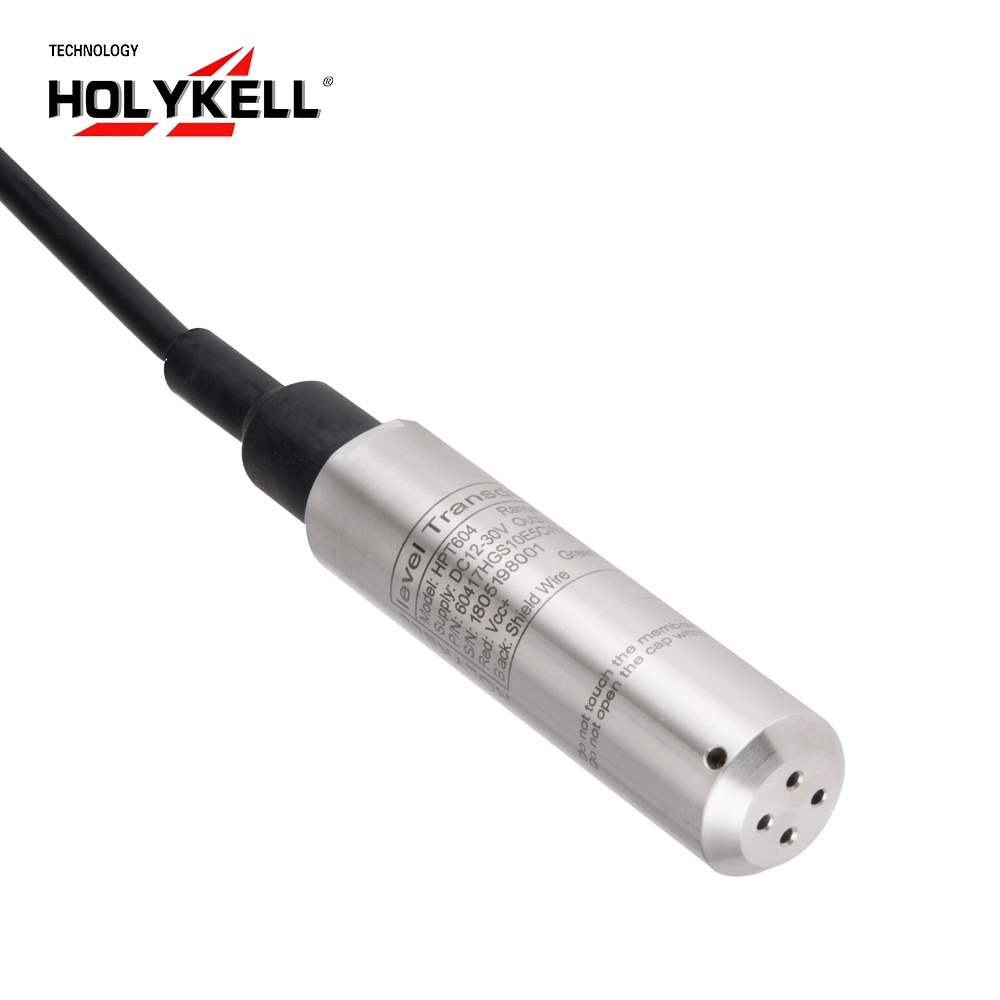

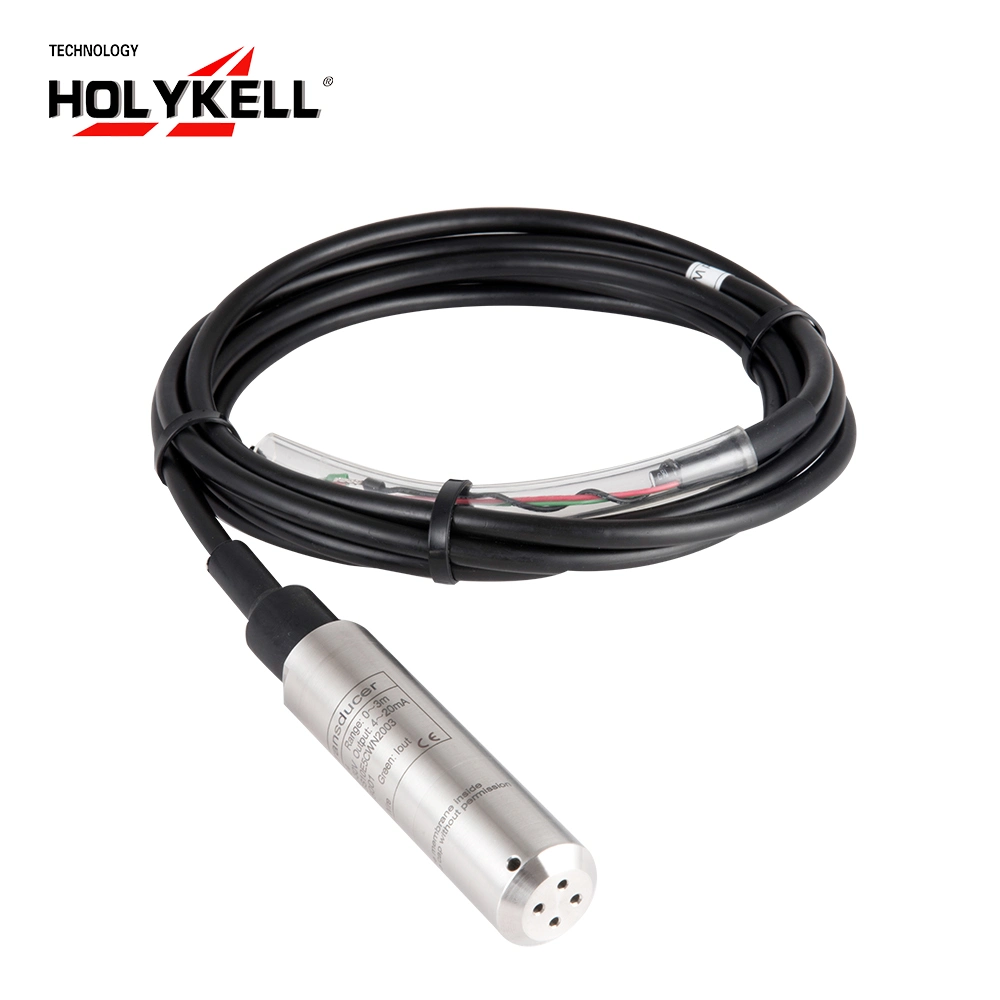

Holykell Hydrostatic Submersible Liquid Level Transmitter
HPT604 is a submersible level transducer suitable for liquid level and depth measurement. It consists of an imported U.S.A MEAS TE silicone core element encased in all 316 stainless steel, hermetically sealed housing make it suitable for immersion in most industrial liquids and oils. 5-10 years design life, the lifelong maintenance for your project escort
You will benefit from Our HPT604 submerisble level transducer?
RS485 Support PC software configuration and Field calibration
2.Without maintenance, even in the most humid environments.
The vent with a filter breath atmospher and protect moisture enter transducer
3.Energy-saving and environmental protection
Low-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3V
Double output digital signal and temperature
1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response time; Its service life is 2-3 times of similar products.
2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;
Anti-interference is enhanced by 300%, the stability is over 10 years.
3. The unique design of 8 hole and The unique filter design, it Can effectively filter out impurities,prevent blockage, prevent shock; Prevent plugging rate increases more than 80%.
4. Automatic temperature compensation, -40 ~ 85, autocorrection temperature drift.
5. Five layers of seamless and waterproof dustproof connection design, international level IP68;12 mm waterproof and oil-proof cables, the service life is more than 10 years.
Specificate of submersible level transducer
HPT604 submersible level transducer
-30~80 or -40~100(Customized)
Standard:-10~60 or by Customized
Compatible with 316L Stainless Steel
3m PUR cable with vents
9600 (standard), 2400,4800,19200 by customized.
1 start bit, 8 data bits, 1 stop bit
10 points/second to 1 point/50 minutes
20 bit 10ppm
>100M Ω @50V dc
Zero Temp. Drift
Typical: 0.03%FS/, Max: 0.1%FS/
FS Temp. Drift
Typical: 0.002%FS/, Max: 0.1%FS/
≤4 to 10 ms (standard); ≤1 ms (Customized)
ATEX intrinsic safety or ExdIICT6, TUV RoHS and CE Certificate approving
None (standard type); Air conducts withstand voltage 8000V Shell and Cable conduct withstand voltage 4000V. This function is customized.
EN 61326-1:2013; EN 61326-2-3:2013
EN 61000-6-2:2005; EN61000-6-4:2007+A1
PT100, K, J type thermocouple customized
Applications : Lift station monitoring,Tank liquid level,Landfill leachate monitoring
Construction by-pass pumping,Dewatering,Pump control,Slurry tank liquid level
Wastewater,Fuel tank. Fuel tanker
OEM / ODM services
To meet the user diversified requirement, Holykell have established a set of customer service and technical support system with OEM / ODM order as the center, and responded and Handle the customer's requirements in a timely manner to ensure accurate delivery time and product quality.
Fastest reply:Professional sales engineers 7/24 online services
Payment terms:T/T ,Western union, Paypal, Credit Card, L/C others
Fast delivery: within 24 hours release the cargo (normal spec.), Customized 7-12 days after payment .
MAINTENANCE & AFTER-SALES SERVICES
Customer Feedback: Sales engineers and technical engineers will be one-on-one service for you to exclude all obstacles when use our sensors.
Warranty period: 18 months
Product life-long maintenance: Holykell can provide you with the maintenance of the whole life of the sensors
Holykell Technology Co. , Ltd is a high-tech company integrating R&D, production and distribution. The company has a purification plant of 5000m2, an annual output of 1 million production line of pressure sensor, transmitter and intelligent digital instrumentation.
Now the company has more than 120,000 customers worldwide, the products have been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries.
Holykell can provide a cost effective solution for pressure monitoring for a variety of applications. Welcome to your inquiry.
1:How long will you give me the reply?
we will contact you in 30mins as soon as we can.
2:Could I get samples?
Price is for 1m range RS485 1 m PE cable with vents , If you want to order other specification ,you can contacts us directly ,we will reply you 24 hours online .
3:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately
4:How to pay for that ?
Of We could accept T/T,Paypal,WU ,Credit Assurance.
You will get full protection for your orders ,More details Kindly click Trade Assurance .
