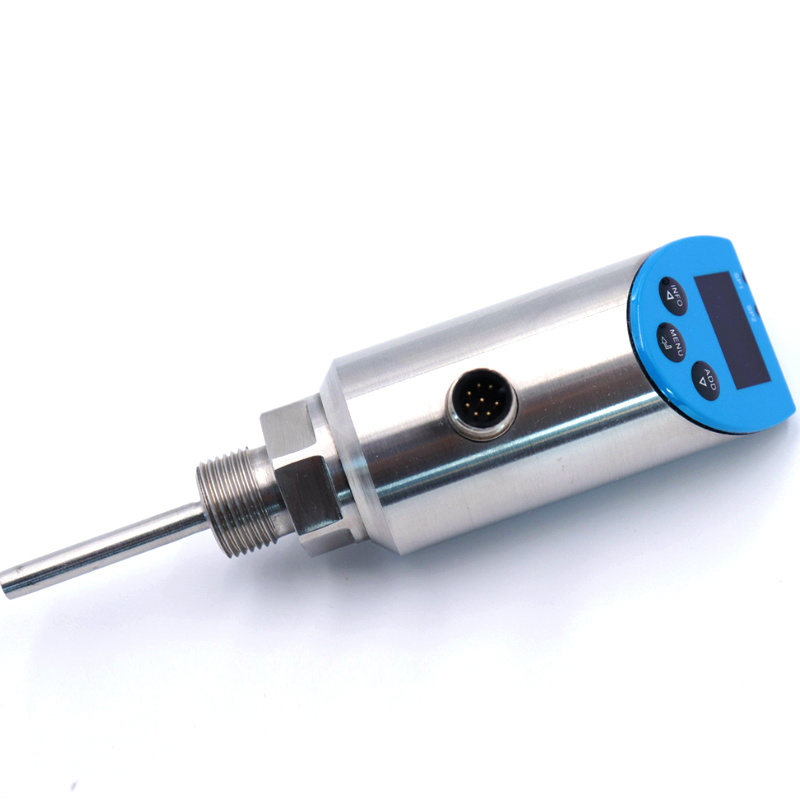

STS Intelligent Electronic Temperature Switch with Display
The temperature switch STS is robustly designed and easy to use. The STS is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. It is temperature switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.
WNK Intelligent Switch Series:
SPS Intelligent Pressure Switch
SLS Intelligent Level Switch
STS Intelligent Temperature Switch
SPS-1 Intelligent Sanitary Flat Diaphram Pressure Switch
Feature - Intelligent Electronic Temperature Switch:
1. Temperature measurement in various occasions
2. PNP switching, voltage and current outputs
3. Switching points settable
4. Switching can be set normally open / normally closed
5. Supporting Switching delay
6. Various analog output ways available
7. Displaying temperature peak value and environment temperature
8. Analog output span settable
9. High light switch indicating

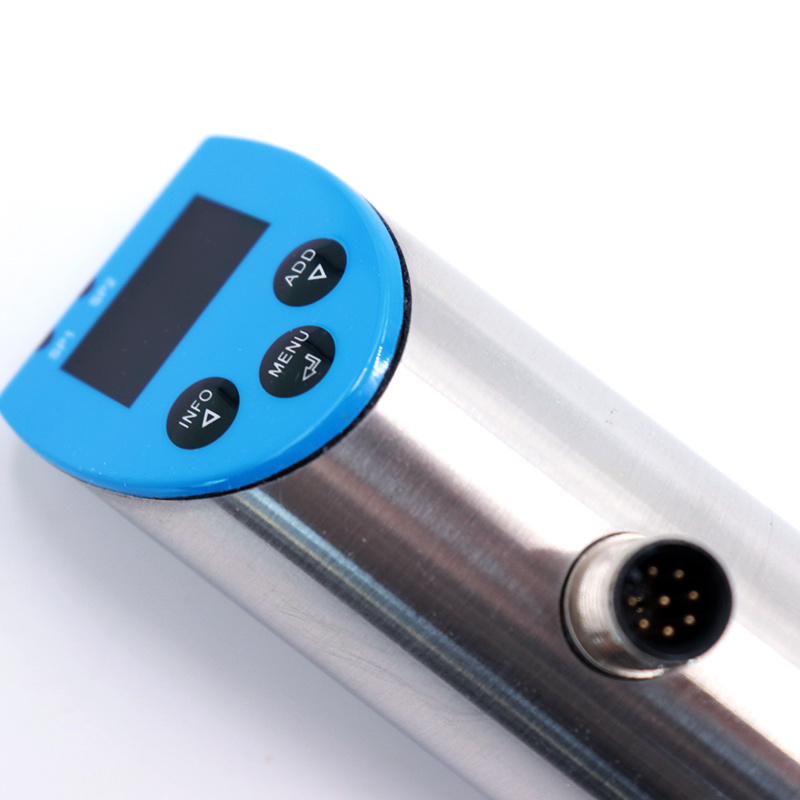

10. OLED self-luminous display
11. Display turnable 180°
12. Housing with electrical connection against process connection rotatable 330°
13. Industrial touch buttons
14. Various temperature units on display
15. Parameters setting for Password protection
16. Optional Chinese and English menu
17. Support MODBUS communication
Specification - STS Temperature Switch:
Dimensions - STS Temperature Switch:
The temperature switch STS is robustly designed and easy to use. The STS is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. It is temperature switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.
WNK Intelligent Switch Series:
SPS Intelligent Pressure Switch
SLS Intelligent Level Switch
STS Intelligent Temperature Switch
SPS-1 Intelligent Sanitary Flat Diaphram Pressure Switch
Feature - Intelligent Electronic Temperature Switch:
1. Temperature measurement in various occasions
2. PNP switching, voltage and current outputs
3. Switching points settable
4. Switching can be set normally open / normally closed
5. Supporting Switching delay
6. Various analog output ways available
7. Displaying temperature peak value and environment temperature
8. Analog output span settable
9. High light switch indicating
10. OLED self-luminous display
11. Display turnable 180°
12. Housing with electrical connection against process connection rotatable 330°
13. Industrial touch buttons
14. Various temperature units on display
15. Parameters setting for Password protection
16. Optional Chinese and English menu
17. Support MODBUS communication
Specification - STS Temperature Switch:
| Product name | Electronic Smart Temperature Switch |
| Measuring range | -50260ºC |
| Accuracy | ≤±0.5ºC |
| Supply power | 1230V DC |
| Temp. Measuring element | PT1000 |
| Reponse time | < 10ms |
| Temp. drift | ±0.15%/10K |
| Resolution | ±0.01ºC |
| Analog output accuracy | ≤±0.2%FS |
| Output configurations | 2×PNP + 0V~5VDC/10VDC + MODBUS |
| 2×PNP + 0mA/4mA~20mADC + MODBUS | |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Switching reponce time | <10ms |
| Swith delay | 0.00s~1000.0s |
| Switching motion mode | Delay or windows mode |
| Analog signal output and max ohmic load RL | Current output 0/4...20mA, 20...4mA RL≤0.5k |
| Voltage output 0...5/10v, 5/10...0v RL>10k | |
| Screen display | OLED |
| Menu language | Chinese and English |
| Switch indicating | 2 Red LED |
| Displaying units | ºC,ºF,K |
| Buttons | 3 blue back-lighted touch buttons |
| Supplementary variables displaying | Environment temperature, analog output value, max peak value,mini peak value |
| Supplementary variables displaying way | Fixed displaying or switch display by INFO button |
| Working temperature | -30-80ºC |
| Storage temperature | -40ºC~80ºC |
| Electromagnetism compatible | GB/T 17626.2/3/4-2006 |
| shock resistance | ≤10g/10Hz...500Hz(IEC 60068-2-6-2007) |
| vibration resistance | ≤50g/11ms(IEC 60068-2-27-2008) |
| Protection class | IP65 |
Dimensions - STS Temperature Switch:
